Safety Guarding Posts

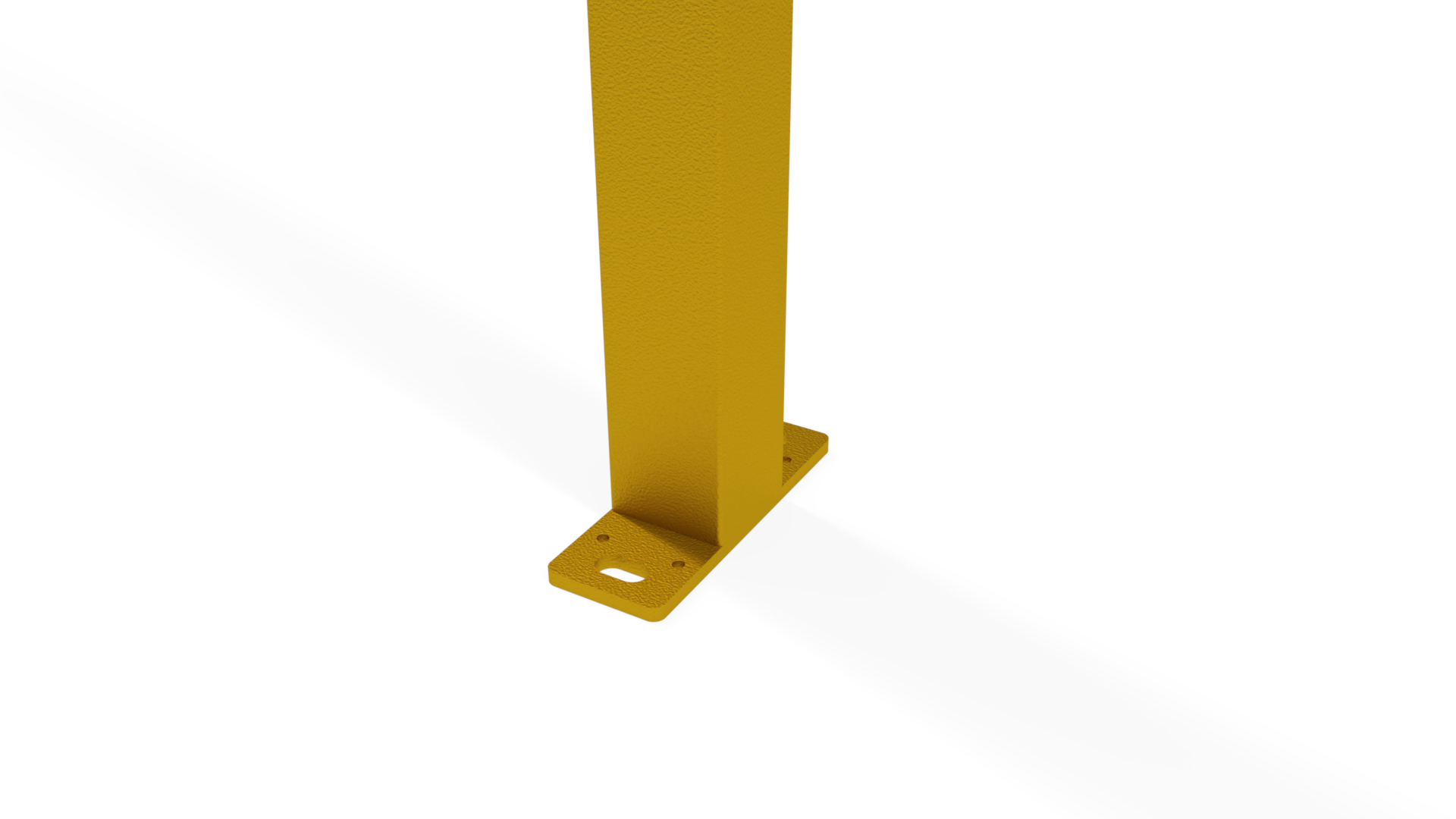

Our standard posts provide a robust foundation for most guarding applications. Made from 2"x2" 14-gauge tube steel and robotically welded to the foot pad.

• Welded design with (4) M6 jack-screws for leveling (max 12mm)
• 2-4 clearance holes for 3/8" anchors
• Includes zinc-plated shim
• Standard color: Safety Yellow (RAL1018); custom colors available
• System heights: 1200mm, 1400mm, 1600mm, 1800mm, 2200mm, 2700mm

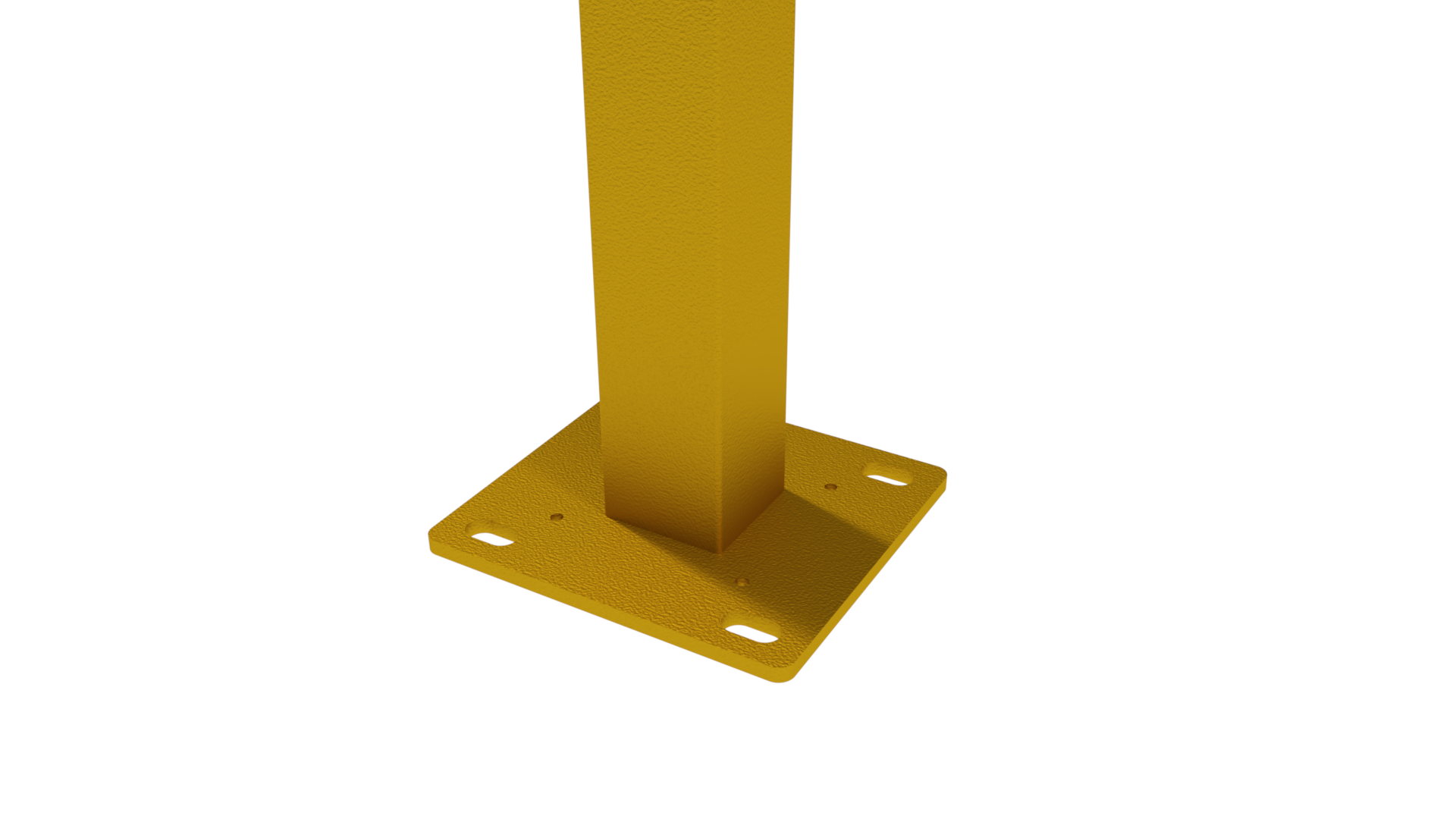

Ideal for wide doors and high-impact environments. Provides superior strength and rigidity.

• Used with wide doors for added stability
• Same robust construction as standard posts
• Leveling and anchor features included
• Custom options available

Standard and heavy duty leveling posts adjustable up to 2 1/2". Perfect for uneven floors.

• Adjustable height up to 2.5 inches
• Available in standard and heavy duty variants
• Easy leveling with M6 jack-screws

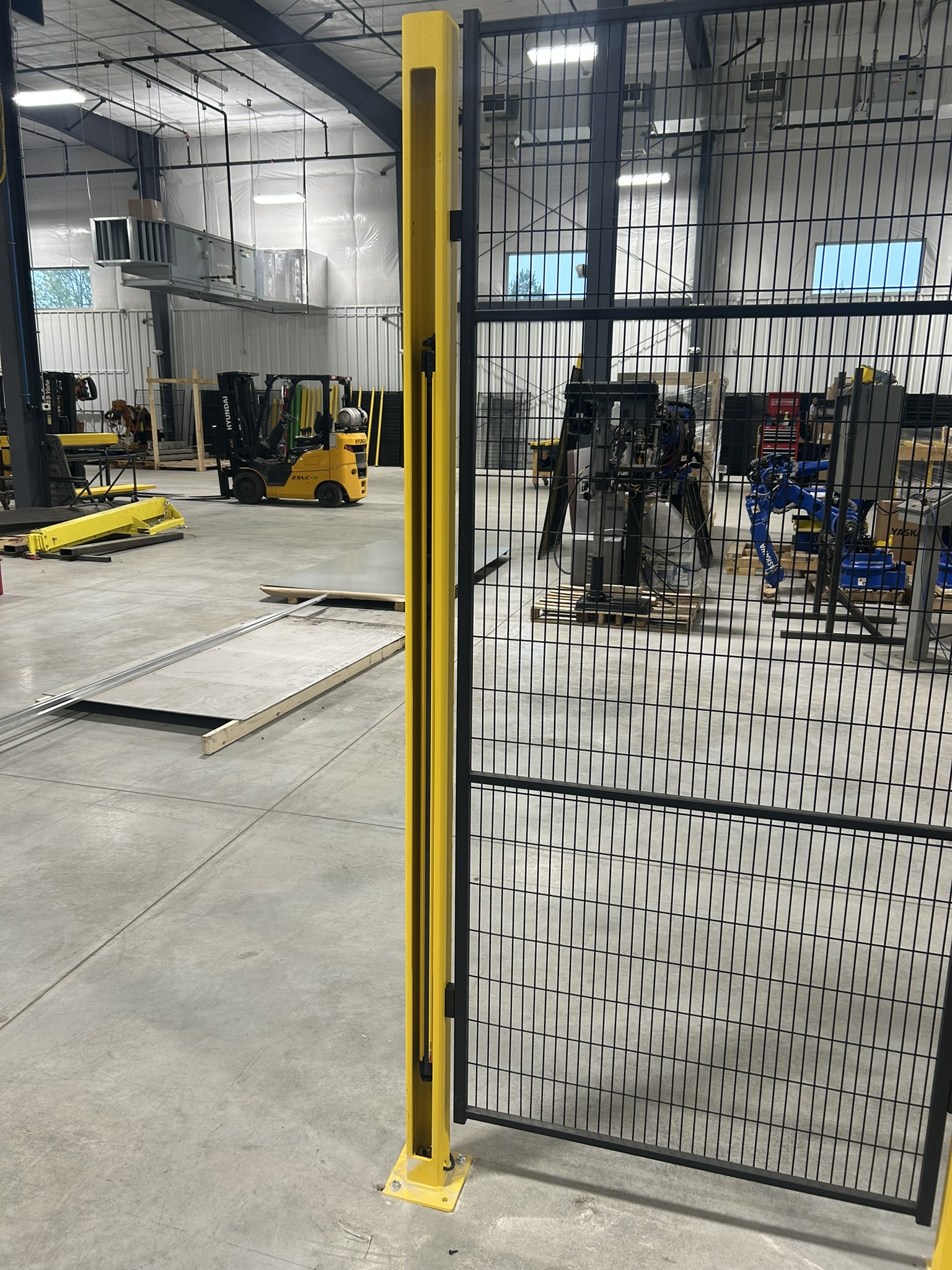

Specialized posts for seamless integration of safety light curtains, providing optical guarding solutions.

• Made from laser cut 3x3 1/4" steel tube
• Welded heavy duty foot pad
• Compatible with any light curtain brand
• Compatible with standard guarding systems
• Enhances safety in high-traffic areas

Corrosion-resistant stainless steel posts made from grade 304 steel. Ideal for food, pharma, and harsh environments.

• Grade 304 stainless steel tube and wire
• Laser welded construction with glass bead finish
• 20mm stand-off with 5/16-18 internal thread
• 1/4" thick post foot with 1/2" thick stand-offs

For specialized applications, we offer custom post designs straight from the factory. Tailored to your unique requirements.

• Custom sizes, colors, and configurations
• Quad-drilled options for flexible mounting
• Specialized features like integrated wire ways
• Fast turnaround on custom orders
