Quick Start Guide

Get up to speed on AMGS systems in minutes.

Use this guide to choose the right system size, provide the key details for an accurate quote, and keep your project moving quickly.

View System Sizes Quote Checklist

Start Here

Steps to Move Forward

1 Define your cell footprint, guarding height, and access points.
2 Identify door types, safety interlocks, and applicable standards.
3 Share a sketch or CAD file for a tailored quote and recommended solution.

Request a Machine Guarding Quote →

How do AMGS System Widths and Heights Work? expand_more

AMGS guarding systems are fully modular. Selecting the right panel width and height based on your layout, access needs, and safety requirements helps minimize lead times and ensures compliance.

Standard Panel Widths (mm)

250

300

400

500

600

700

750

800

1000

1250

1500

1750

2000

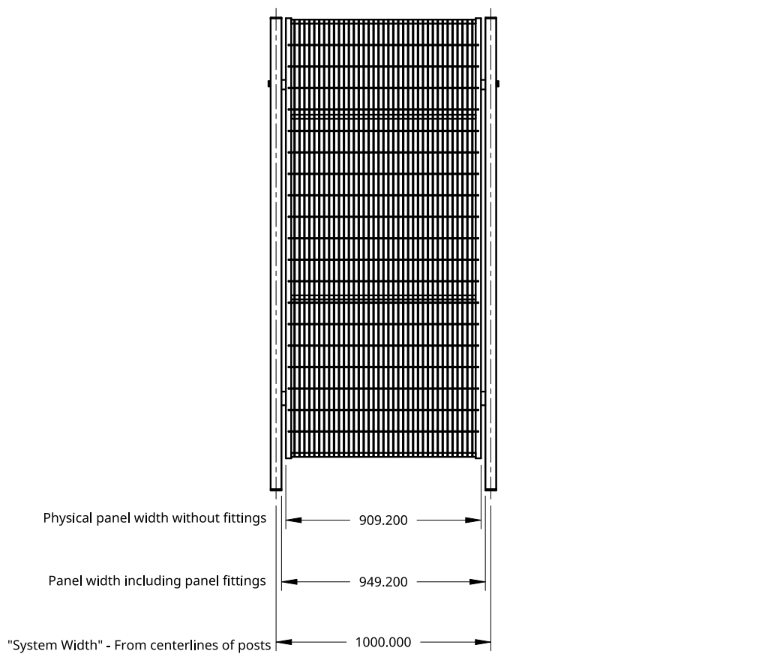

Diagram showing standard AMGS panel widths for modular machine guarding

Standard Panel Heights (mm)

1200

1400

1600

1800

2200

2700

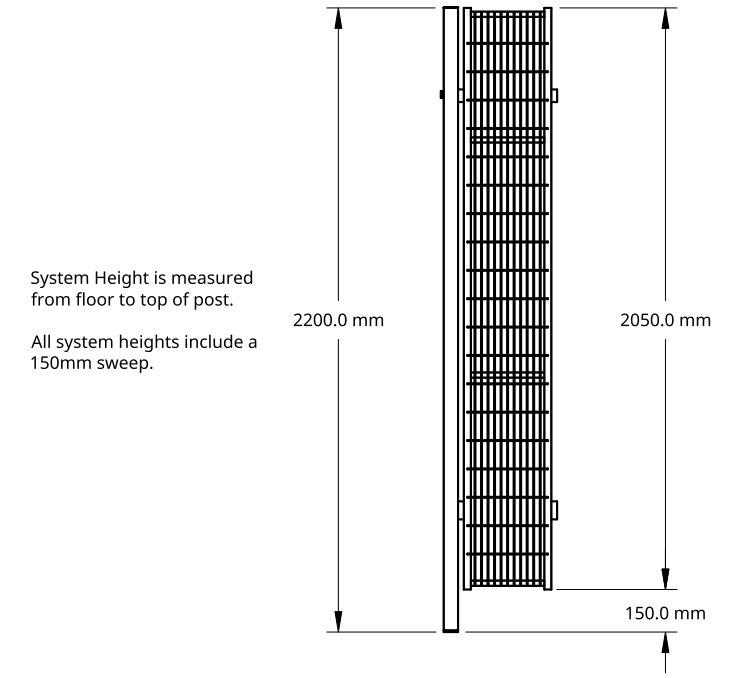

Illustration of standard AMGS guarding heights for safety compliance

Quick Tips

CAD files or drawings with doors, cut-outs, and accessories labeled will speed up quoting.
We excel at custom guarding — let our experts design the perfect solution for complex applications.

Quote Request Best Practices expand_more

Provide these details upfront to minimize revisions and keep lead times short.

Product Type: Wire Mesh, Polycarbonate, Sheet Metal
Layout: Sketch or native CAD file (.dxf, .dwg, .step) showing footprint, door locations, and conveyor cutouts
Heights & Widths: Target system height and any width constraints
Door Details: Swing direction, hardware preferences, safety interlocks (type/category)
Environment: Washdown requirements, special finishes/materials, laser/welding application
Timeline: Required delivery date
Customization: Cut-outs, colors, mounting lates/locations
Compliance: Relevant standards (e.g., ISO 13849-1, OSHA, ANSI) or customer specs

The more information we have, the faster we can deliver accurate drawings and pricing.

Don't have everything?

No problem — send us what you have and we'll work together to fill in the gaps.

Ready to Begin?

Send us your layout — we'll propose a complete kit.

Attach a sketch, PDF, or CAD file and note door types, heights, and safety interlocks. We'll respond with a recommended bill of materials and lead time.

Request a Quote More Resources

Attach This Information

check_circleOverall guarding footprint or cell size
check_circleDoor locations and swing/slide preference
check_circleTarget height and any cutouts (conveyors/robots)
check_circlePreferred safety electronics and standards
check_circleCAD models (.dxf/.dwg/.step) or sketches/PDFs
check_circleRequired delivery date

Quick Start FAQs

What information is needed to get a machine guarding quote? expand_more

A layout sketch or CAD file, guarding height, access points, door requirements, and relevant safety standards (OSHA, ANSI, etc.). Photos or drawings help speed things up.

How long does it take to receive a quote? expand_more

Most quotes are provided within 24 hours after we review your details. Complex or custom systems may require additional engineering review.

Can you quote custom machine guarding systems? expand_more

Yes — we specialize in both modular and fully custom systems designed to fit your exact equipment, layout, and safety needs.

Do your quotes support OSHA compliance? expand_more

Yes — our designs support OSHA and applicable ANSI requirements. Final compliance depends on proper installation and integration into your overall safety system.
